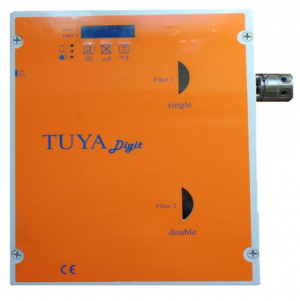

For single filter plants, within programmer

It controls the membrane chambers single effect with spring return. The pilot distributor has its inner programmer (it does not need a programmer or PLC).
Connection for six membrane chamber, six  programmable phases pilot (5 phases of the regeneration).
Functioning:

  • volumetric
  • temporized or
  • with external signal (analyzer, pressure switch)

With daily inner clock

Outputs relais (n.o. / n.c.)

REL1: additional programme (activation before, during or after regeneration – programmable duration)
REL2: second additional programmable programme (as above)
REL3: general alarm
REL4: dosing pulse (only with a connected water meter)
REL5: exercise valve (add a solenoid valve) or a contact during treated water’s supply and a contact during regeneration.

Analogic output:

4 – 20 mA: processing signal, various phases of the regeneration and general alarm

Inputs (n.o.):

WM: launch pulse water meter
IN1: Stop regeneration away (interrupt a current regeneration)
IN2: Start regeneration or Stop (block the beginning of a regeneration)
IN3: Opening/closing exercise valve away
Examples of use: close the treated water’s supply in force, in case of storage tank full
IN4: Hold regeneration
Examples of use: stop the regeneration where it is until the contact goes back (example: wash the softener until the drain’s conductivity goes into expected range back, wash the filter until the turbidity goes into the expected value back).

TUYA digit single n.o.24V 50-60Hz290505
230/24V 50-60Hz290506
TUYA digit single n.c.24V 50-60Hz290510
230/24V 50-60Hz290511
Joints setwater/air290405

Technical data:

Power supply 24 Volt 50-60Hz oppure 230/24V 50-60Hz
Control performance absorption:2,5 VA
Switching time:10 seconds
Protection class:IP 54
Synchronization:included in the scope of the delivery
Control panel:air or water (out of foreign bodies)
Maximum pressure:8 bar
Pressure for the test:16 bar
Piping internal diameter :2 mm
Environment temperatureda 5° a 40°C
Connection to valves:6
Thread:1/8” female, 10mm max. thread length
Weight:5,8 kg
Dimensions:large 400, height 390, depth130 mm,
leave 50 mm of space left
Relay output:5, contacts n.o./n.c
Additional program 1 and 2
Alarm
Dosage
Exercise valve
Potential-free max. 250V 1.5A 250 VA initial load
(Do not overcome the max load of the adapter)
Analogic output:4-20mA galvanically separated (250 ohm max. load)
Input:5 n.o
Regeneration stop
Start or Stop regeneration
Exercise valve
Hold regeneration
Noise filter:Included (type EMI)
Internal transformer:9-12V 50-60Hz
Internal motor voltage:12V 50-60Hz
Regeneration counting:Included
Certifications:CE e RoHS
Power adapter (optional):10VA
External adapter certificated CE, TUV, NF. RoHs

Materials:

Rotary valve:stainless steel
Rubber seal:rubber
Adjustment fuse.stainless steel
Spring:stainless steel
Rings:perbutan
Box (involucre):PC Polycarbonate
Teflon seal:teflon
