Controller for ionexchange plants

– Menu driven pogramming utilizing LCD –display (2 lines).
– Choice of languages.
– Adaptable to user specific requirements by built-in programmable options.
– Simple control utilizing easy to follow symbols.
– Suitable for single, double and triple column installations.

Model MV: universally applicable for remote control of control valves and pilot valves.
Model SV: universally applicable for remote control of solenoid valves (only for single or double installations).
– Programmable capacity from 10 up to 999999 m3 °E
– Programming a service telephone number possible.
– Activation of either: flow, time interval, external contact, real time clock and manual control.
– Time delayed regeneration.
– Substantial status information employing info key.
– Additional functions for service personnel: fast flow, filter exchange without program initiation, regeneration of standby filter.
– Large green LED display showing the amount available of softened water.
– Inputs : 3x water meter, external start (e.g. by hardness monitor), chemical monitoring, 1 programmable input for regeneration stop and level switch for storage tank.
– Outputs:
Model MV: 9 potential contacts for 3 control valves with zero flow pulse, 3 service valves, 6 free programmable outputs (potential free) for 3 additional program routines, regeneration, flow rate, flush, alarm and warning contact.

Model SV: 9 potential contacts for solenoid valves, 6 free programmable outputs (potential free) for solenoid valves, 3 additional program routines, regeneration, flow rate, flush, alarm and warning contact.

– Security of program information against supply failure, as all program information is stored without battery.
– Real Time Clock.
– Manufactured in accordance with EMC codes of practice.

Tecnical data:

  • enclosure protection: IP65
  • weight: 4 kg
  • dimensions: 390 x 318 x 160mm
  • power output: max 8A
  • power input: max 9V 8mA

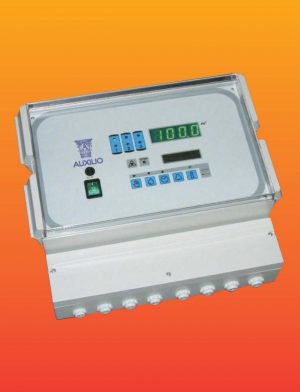

AUXILIO MV

wall mounted

tree filter plants
AUXILIO MV 230V 50-60Hz 280532
AUXILIO MV 24V   50-60Hz 280530
AUXILIO MV 115V 50-60Hz 280531
AUXILIO MV 230/24V 50-60Hz 280535
AUXILIO MV 115/24V 50-60Hz 280536
AUXILIO SV

wall mounted

two filter plants
AUXILIO SV 230V 50-60Hz 280552
AUXILIO SV 24V   50-60Hz 280550
AUXILIO SV 115V 50-60Hz 280551
AUXILIO SV 230/24V 50-60Hz 280555
AUXILIO SV 115/24V 50-60Hz 280556
