It controls the pool wash valve, the recirculation pump and the wash pump (if present).
The rinse pump is switched off during valve movement.
The pilot distributor has its own internal program (it does not need a programmer or PLC).
Programmable 6-phase pilot (5 regeneration phases).
Operation:
timed
with external signal (pressure switch)
With internal daily clock.
REL1: pump nr. 1, programmable (pump shutdown during valve movement)
REL2: pump nr. 2, programmable (pump shut-off during valve movement)
REL3: generic alarm
REL4: dosage pulse (only with connected water meter)
REL5: operating valve (add solenoid valve) or a contact during supply of treated water and a contact during regeneration
4 – 20 mA: processing signal, various regeneration phases and generic alarm
IN1: Remote washing stop (stop a washing in effect)
IN2: Start washing or Stop (block the start of a wash)
IN3: Remote operating valve opening / closing
IN4: Hold wash
Example of use: stop the washing in the position it is in until the contact returns (example: wash the filter until the turbidity is within the expected value)

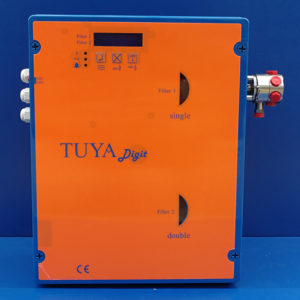

| TUYA digit pool | 24V 50-60Hz | 290240 |
|---|---|---|
| TUYA digit pool | 230/24V 50-60Hz | 290541 |
| Fittings set | Water / air | 290405 |
| Network connection: | 24 Volt 50-60Hz or 230/24V 50-60Hz |
|---|---|
| Command yield absorption: | 2,5 VA |
| Switching time: | 10 seconds |
| Protection class: | IP 54 |
| Synchronization: | included in the delivery |
| Command medium: | air or water (no foreign bodies) |
| Max pressure: | 8 bar |
| Test pressure: | 16 bar |
| Internal diameter of the pipe: | 2 mm |
| Room temperature: | from 5° to 40°C |
| Connection to the valves: | 6 |
| Filettatura:Thread: | 1/8 "female, thread length max. 10 mm |
| Peso:Weight: | 5, kg |
| Dimensions: | width. 400, height 390, depth 130 mm, |
| lasciare spazio a sinistra 50 | |
| Relay output: | 5, contacts n.a./n.c. |
| Supplementary program 1 and 2 | |
| Alarm | |
| dosage | |
| Operating valve | |
| without potential, max. 250V 1.5A 250VA initial load (Attention, do not exceed the maximum load of the transformer) | |
| Analog output: | 4-20mA galvanically divided (max. Load 250 ohm) |
| Entries: | 5 n.a. |
| Regeneration stop | |
| Start or Stop regeneration | |
| Operating valve | |
| Hold regeneration | |
| Interference filter: | including (EMI type) |
| Internal transformer: | 9-12V 50-60Hz |
| Internal motor voltage: | 12V 50-60Hz |
| Counts regenerations: | included |
| Certifications: | CE e RoHS |
| Materials: | |
|---|---|
| Rotary valve: stainless steel | Rubber gasket: rubber |
| Adjustment spindle. stainless steel | Rings: perbutan |
| Spring: stainless steel | Box (casing): PC Polycarbonate |
| Teflon gasket: teflon |
