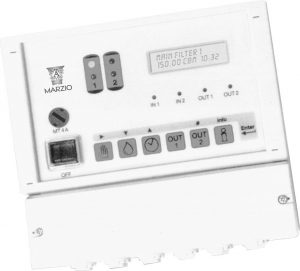

Controller for ionexchange plants

– Menu-driven programming using a “two line” LCD display.
– Text displayed in English, German, French, Italian or Dutch.
– Adaptation to user specific requirements through integrated programmed options.
– Simple to operate using easy to follow symbols.
– Suitable for single and double column installations in routing, parallel or serial circuits.
– Universaily implementable for a wide range of control valves, pilot valves and magnetic valves.
– Capacity values programmable from 1 to 65535 m3 E or from 0.01 to 9999.99 m3.
– Option for programming a service telephone number.
– Regeneration/rinsing activation by time e interval, flow, external switching, real time clock or manual control.
– Time delayed regeneration/rinsing.
– Control of quantity dependent siuicing.
– Extensive status request options using the INFO key: sluice control,regeneration/rinsing time, extra programm, filter capacity, total quantity of treated water, current input and outputs status, software version, start time interval, time delayed regeneration/rinsing, service telephon number,input and output programming.
– Additional functions for service personnel: fast flow, filter exchange without regeneration/rinsing, standby filter regeneration/rinsing, time delayed
regeneration, immediate regeneration/rinsing stop without program reset.
– Selectable standard input function: water meter, regeneration/rinsing stop, regeneration/rinsing start or regeneration/rinsing agent monitoring.
– Expandable with one input function and two output functions by the addition of extra print IF.
– Selectable functions for the extra outputs: extra program, regeneration/rinsing procedure, take-off impulse, signalling or sluicing.
– Available hardware models: “MV” model for central control valves and “SV” model for single magnetic valves.
– Standard outputs “MV” model: 2 central control valves with zero flow, 2 operating valves.
– Standard outputs “SV” model: 6 magnetic valves (8 when optional additional cirucuit board is present).
– Program data secured against power failure as all important information is stored without a battery
– High performance microprocessor with “Watchdog” “Illegal operation Code” and frequency monitoring functions.
– Constructed in accordance with EMC Guidelines: with galvanic isolation of the microprocessor and the inputs and outputs, in addition to the integration of an extra interference filter.

Tecnical data:

  • enclosure protection: IP65
  • weight: 2,6 kg
  • dimensions: 211 x 185 x 95mm
  • power output: max 4A
  • power input: max 9V 8mA
Marzio MV wall mounted
Marzio MV 230V 50-60Hz 280502
Marzio MV 24V   50-60Hz 280500
Marzio MV 115V 50-60Hz 280501
Marzio MV 230/24V 50-60Hz 280505
Marzio MV 115/24V 50-60Hz
Marzio SV wall mounted
Marzio SV 230V 50-60Hz 280512
Marzio SV 24V   50-60Hz 280510
Marzio SV 115V 50-60Hz 280511
Marzio SV 230/24V 50-60Hz 280515
Marzio SV 115/24V 50-60Hz
Option
Optional circuit board IF 280508
